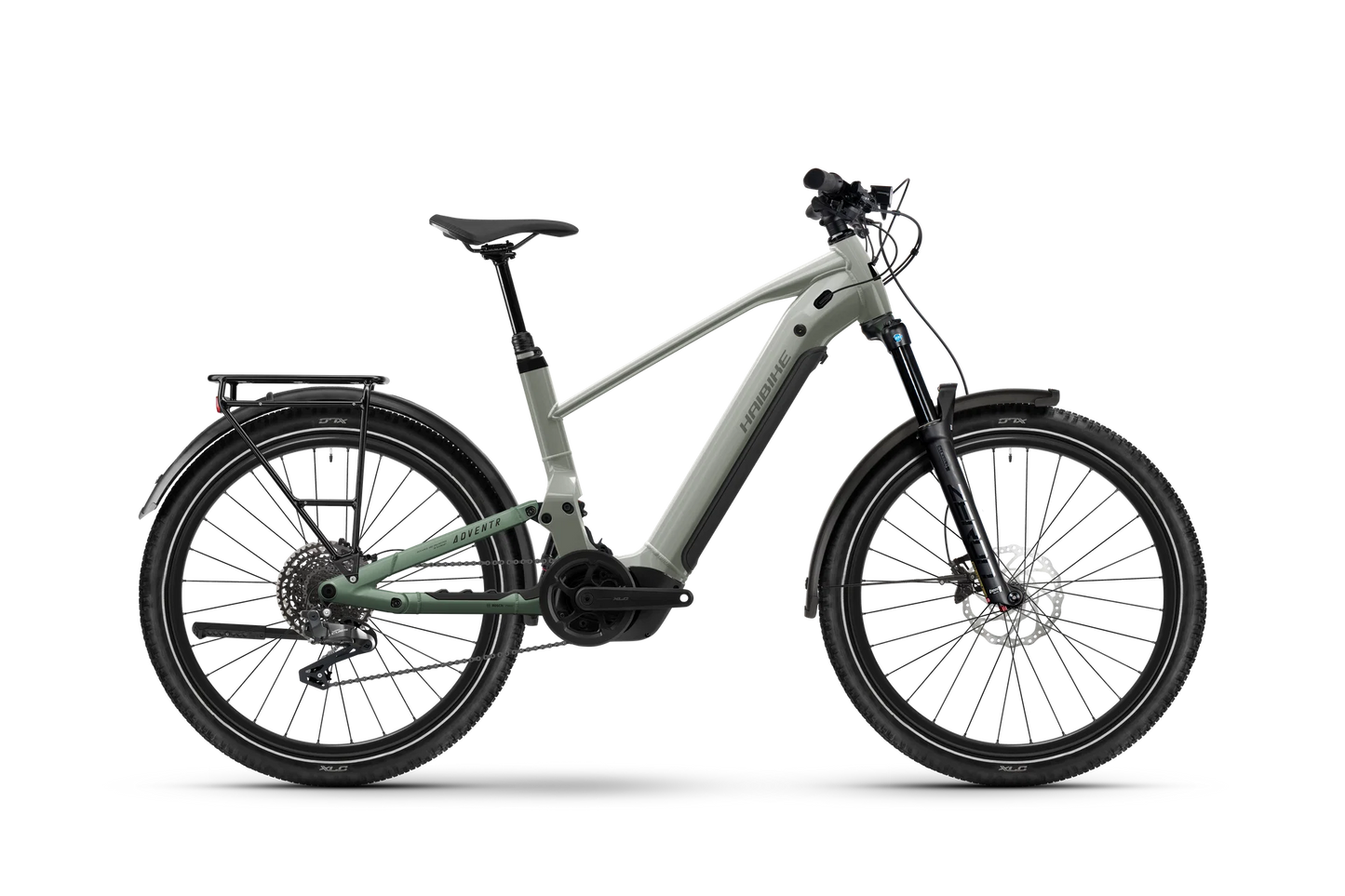

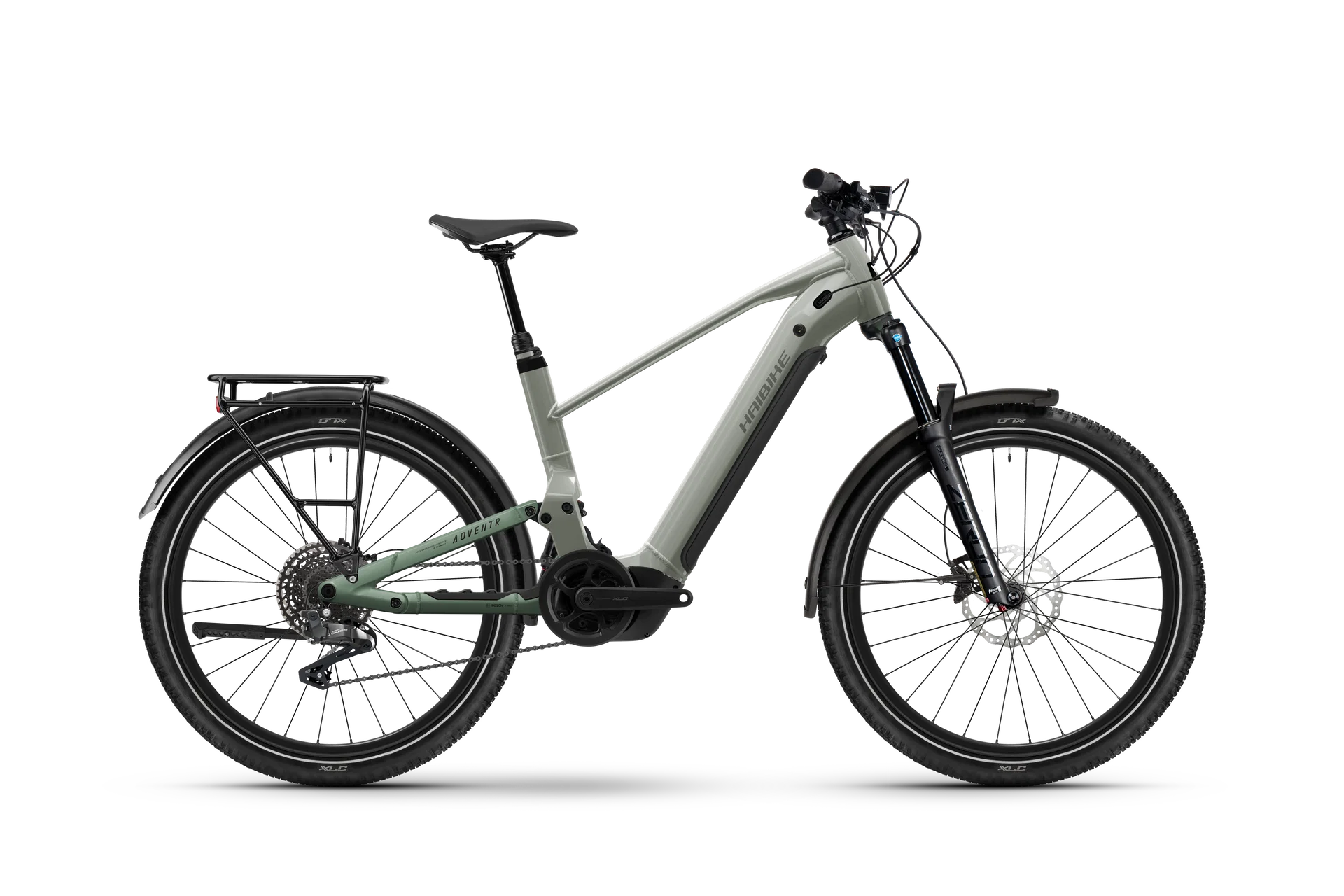

Haibike ADVENTR 4 27.5" High Bike
Haibike ADVENTR 4 27.5" High Bike
Couldn't load pickup availability
Your entry into adventure.
Our new ADVENTR 4 is designed for those seeking extra suspension comfort without venturing into extremely challenging terrain. Its specially designed frame platform, with 120 mm front travel, 100 mm rear travel and an impressive total weight capacity of 150 kg, makes this full-suspension e-bike perfect for beginners, those changing bike types, and everyday adventurers. The finely tuned Bosch Performance Line PX motor provides natural and efficient support, while the 600 Wh battery offers enough range for long excursions. Combined with the clear and intuitive Purion 200 display, it's a worry-free package, ideal for those undecided between a classic trekking bike and a comfortable adventure machine. Whether it's health-oriented training, a relaxing evening ride, or simply the desire for more cycling fun, the ADVENTR 4 makes your entry into the world of full-suspension e-bikes a true adventure.
TECHNICAL SPECIFICATIONS
Frame and more
- Rear carrier: Easylife System luggage carrier, MIK
- Brand: Haibike
- Frame: Haibike Aluminium, 27.5", 120mm
- Frame shape: 66_6
- Model name: ADVENTR
- Permissible total weight: 150
- Frame height: 45
- Fork: SR Suntour SF26-ZERON36X-Boost-Air-R-DS, Offset: 44 mm, 120mm
- Shock: SR Suntour Edge X R 165x45mm, Trunnion, M8x40
- Fender: Curana Orbit 75, extra matte black
- Headlight: Trelock Lighthammer LS800 60 Lux, 6-12V
- Headset: Acros Blocklock 135° AZX-220-R4 ZS44/ZS56, Semi-Integrated
- Taillight: Spanninga Aerline 2.0 Brake
- Kickstand: Ursus Mooi 18 mm, Max. Length: 333 mm
Gear shift and brakes
- Brake disc (front): Tektro TR203-53 203 mm, 6 bolt Disc
- Brake disc (rear): Tektro TR180-53 180 mm, 6 bolt Disc
- Front brake: Tektro HD-M535, 4 pistons, resin pad, 203 mm
- Rear brake: Tektro HD-M535, 4 pistons, resin pad, 180 mm
- Chainring: XLC CR-E15 for Bosch BDU38 + Bashring CR-X10, 38T
- Shift lever (right): Shimano CUES SL-U6000-11R, Rapidfire+
- Derailleur: Shimano CUES RD-U6000 10/11s, Shadow+, 11 speed
- Sprocket: Shimano CUES CS-LG400-11, HG, 11-50T
- Chain: KMC eGlide with EPT Coating 9-11s
- Brake lever: Tektro HD-M535-BL
- Derailleur hanger: Glory Wheel UDH
- Chainguide: Winning WI-38L-95 Chainguide
- Crank arm: XLC CR-E18 Crankset 170 mm
Propulsion
- Motor: Bosch Performance Line PX, 600W, 25km/h, 85Nm
- Charger: Bosch Charger 2A 220-240V
- Battery: Bosch PowerTube 600Wh
- Battery capacity: 600
- Display: Bosch Purion 200
- Engine manufacturer: Bosch
- Engine torque: 85
Wheels and wheel components
- Front wheel hub: XLC HF-M15 Boost 15x110 mm, 32H, 6 bolt Disc
- Rear wheel hub: XLC HR-M15 Boost 12x148 mm, 32H, 6 bolt Disc, HG
- Rim (front): XLC WR-M17 Disc 25/584 32H 6,5 mm Valve
- Tires (front): XLC VT-T45 Toorak, 60-584
Handlebar and saddle
- Saddle: XLC Sport Comfort SA-S11 Steel Rail 155 mm
- Handlebar: XLC HB-C32, Dia. 31.8 mm, Rise: 25 mm, backsweep 15°, 740 mm
- Grips: XLC MTB Grip Set VLG-1751D2
- Stem: XLC ST-M36, Dia. 31.8 mm, L: 70 mm, A-Head, Adjustable
Geometry
- Seat tube length: 450
- Seat tube angle: 75
- Head tube length: 140
- Head tube angle: 68
- Chain stay length: 490
- Bottom bracket drop: 35
- Reach: 452
- Seat tube offset: 0
* The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike is not reduced, to replace individual parts with components of the same or higher quality, so that the bike is delivered differently. The use of other components is currently mainly caused by delivery problems due to the Corona pandemic.
